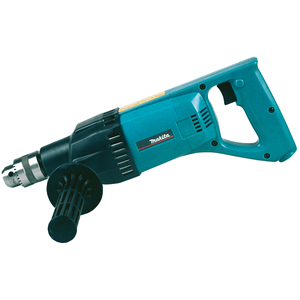

Makita 8406 13MM Diamond Core and Hammer Drill 110V

This hammer drill with torque limiter and powerful motor can accept a large diamond core bit 150 mm(5-7/8")in dia. This tool is ideal for making clean-cut, smooth holes in tile, ferroconcrete, marble, brick, etc.



  • Heavy duty construction - ideal for site work
  • Percussion action for drilling pilot hole.
  • Rotary action for dry diamond core drilling.
  • Torque limiter to prevent operator injury if the core bit snags.
  • Excellent for plumbers, electricians, general contractors, hirers.


Max. in steel- 13 mm
Max. in masonry- 20 mm
Max. in wood- 30 mm
Max dry diamond core- 152 mm
No Load Speed- 0 - 1500 rpm
Blows per minute- 0-22500 bpm
Input wattage- 850 w
Vibration: Hammer Drilling - 9.5 m/sec²
Vibration: Drilling - 2.5 m/sec²
Vibration K factor - 1.5 m/sec²
Noise sound pressure - 94 dB(A)
Noise sound power - 105 dB(A)
Noise K factor - 3 dB(A)
Net weight -7 kg
