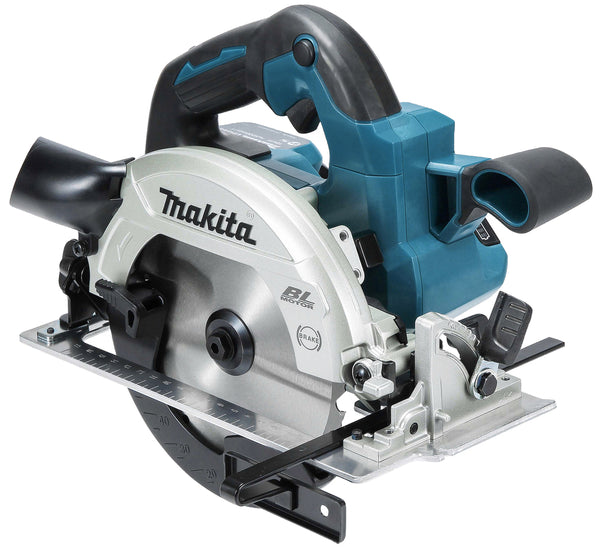

Makita Circular Saw LXT DHS661Z
Efficient and compact brushless professional saw with a brake and remote start for vacuum
An efficient cordless circular saw with a brake and remote start for dust extraction for wood. Accepts blades with 165 mm diameter that achieve a max. cutting depth of 57 mm. Ventilation air is guided to keep the cut line clear and an LED light offers added illumination. Can be used with a guide rule.
Technical specifications
Nominal Battery Voltage - 18 V
Voltage LXT
Max. Cutting Depth at 90° - 57 mm
Max. Cutting Depth at 45° - 41 mm
Max. Cutting Depth at 50° - 37 mm
Max. Bevel Range (Left) - 0 / 50 º
No load speed - 5000 min⁻¹
Sound Power Level (LWA) - 104 dB(A)
Sound Pressure Level (LpA) - 93 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Vibration Level (3 axes) - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor) - 1,5 m/s²
Product Dimensions (L x W x H): - 270 x 186 x 250 mm
Brushless Motor
AWS ready
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) - Li-ion
Max Output Power - 680 W
Capacity 45° - 41 mm
Blade Diameter - 165 mm
Bore Size (Arbor Diameter) - 20 mm
Vacuum cleaner connection Ø in / out - 35/40 mm
